CJR Performance  |  SKU: SQ7061056

Honda CRF110F Piston / Cylinder Kits

$124.99 $149.99

Option

Description

Wake up your Honda CRF110 with more torque across the entire RPM range with a high compression piston or big bore kit upgrade.

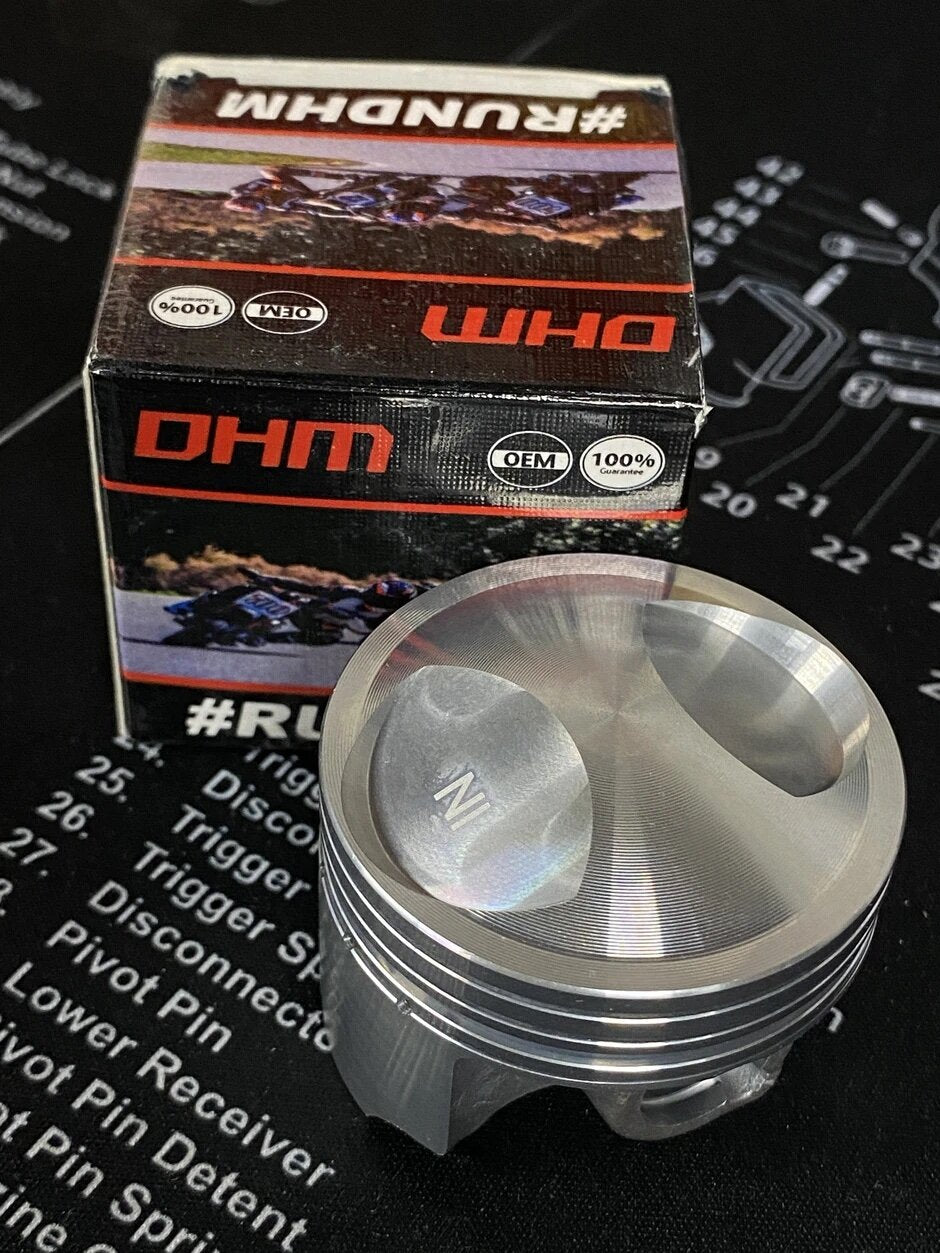

DHM Performance High Compression Piston Kit!
Working closely with DHM to create a reliable high compression piston option coming in at 12.5:1 compression. During our testing we found a 10-12% increase in low end, 15% mid range and 10-12% increase in top end performance. This is one of the best parts you can put on the stock bore CRF110 for more throttle response and low end snap!
This piston kit will include -
- Piston
- Rings/ Circlips / Piston Pin
(Requires - New OEM Head Gasket + Base Gasket - NOT INCLUDED)
Ring Gap Recommend per Manufacture -
1st ring gap is 0.2-0.35 mm / 2nd ring 0.25-0.40 mm


Wiseco 50mm and 52mm Piston Kit
Wiseco produces high quality American made FORGED pistons, that stand up to the test of extreme racing conditions. Every Wiseco product is engineered with the most advanced technologies, for the ultimate performance and durability in all forms of PowerSports!
Stock Bore Piston Upgrade - 50mm 10.25:1 Compression Ratio
+2mm Big Bore Piston Kit Upgrade - 52mm 11:1 Compression Ratio (requires cylinder boring)

BBR132cc Big Bore Kit
Easy bolt-on power. This is the largest bore kit available that does not require boring your engine cases for additional cylinder sleeve clearance. New aluminum cylinder with steel sleeve, lightweight piston kit and gaskets are included in this complete and ready to go kit .

  • For use with stock valve head only

  • Aluminum cylinder with steel sleeve

  • 55mm lightweight aluminum piston kit

  • Gasket kit including cylinder head and cylinder base gaskets

Stock CRF110F - 50.0mm bore, 55.6mm stroke
Note: This bore kit is designed for the 2013-2018 CRF110F. While the newer motors are functionally almost identical, the newer models require a port for the engine temperature sensor. We're working on a new casting - but these take time. Once available, we'll note it here.

TB Parts 132cc Big Bore Kit
This TB CRF110 132cc big bore kit is a great performance upgrade for all year models of the popular Honda CRF110.  With the larger bore, this bolt-on upgrade kit will give you more power and higher compression for a very reasonable price.  This is an ideal option if you’re looking to add some power or you just need a new cylinder, piston, and rings to rebuild your engine.

  • Fits all Honda CRF110 year models

  • For use with stock valve or big valve head

  • Largest bore you can go without boring the cases

  • More power and fun at an affordable price

  • Easy bolt-on kit

  • The cylinder includes a temperature sensor port for the 2019 and up fuel injected models

  • Runs on pump 91+ octane fuel

Kit includes:

  • 55mm Aluminum Cylinder with Steel Sleeve and temperature sensor port

  • 55mm Lightweight higher compression Piston & Rings

  • 55mm Top End Gasket Set

  • Bolt/washer to close off the temperature sensor port (for 2018 and older models)

DUE TO A RACE ITEM, THIS PRODUCT DOES NOT OFFER A WARRANTY - FOR RACE COMPETITION USE ONLY

NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLES
This product is legal for closed-course competition use only; for racing vehicles (a competition vehicle not used on public highways). Intended for off-road use or race purposes; does not meet regulations of pollution controlled roads or highways. This system is NOT compliant with the California Environmental Protection Agency (E.P.A.) or California Air Resources Board (C.A.R.) for use on public roads or lands.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov -- Learn More
