CJR Performance  |  SKU: CJR-054

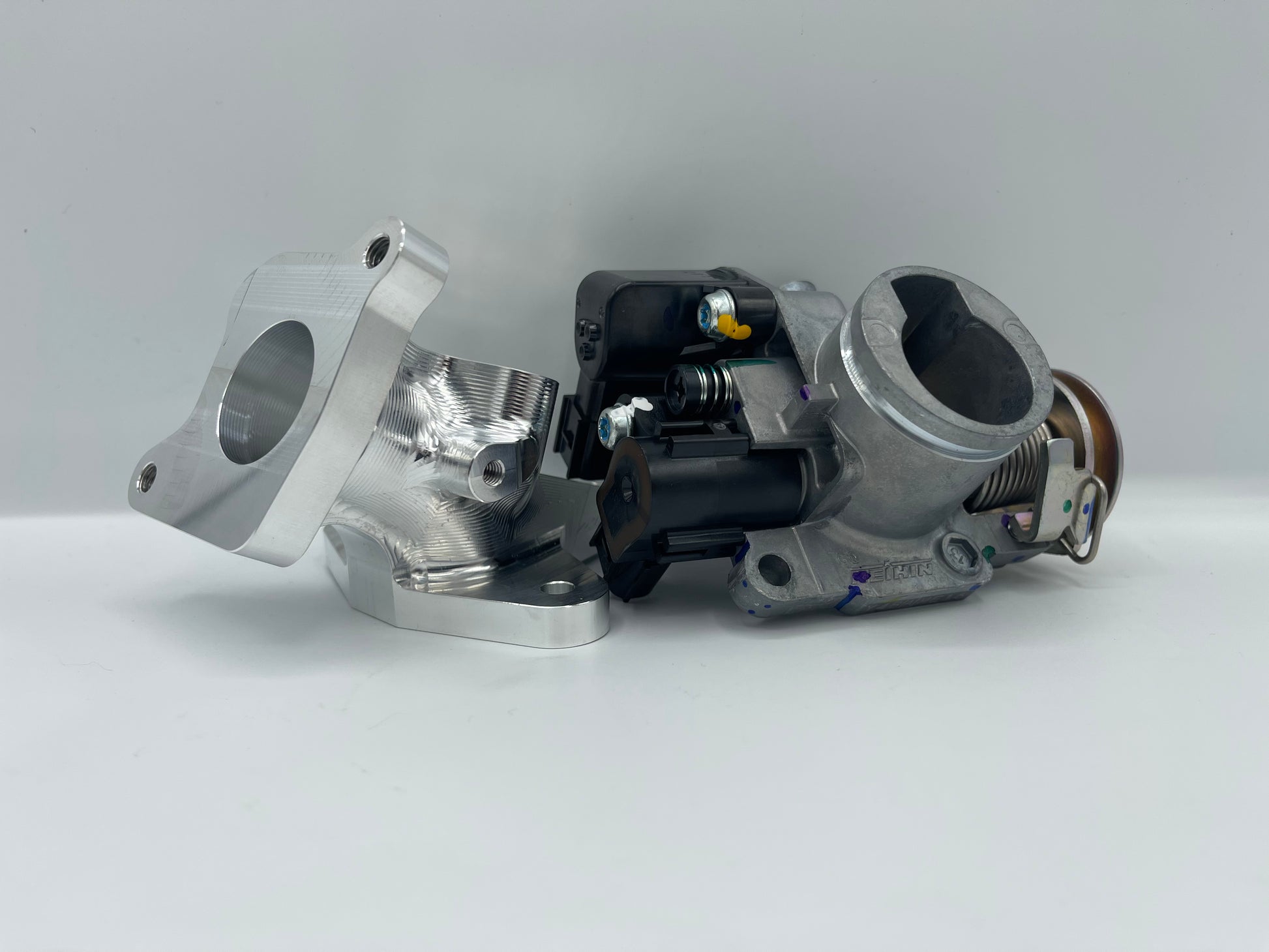

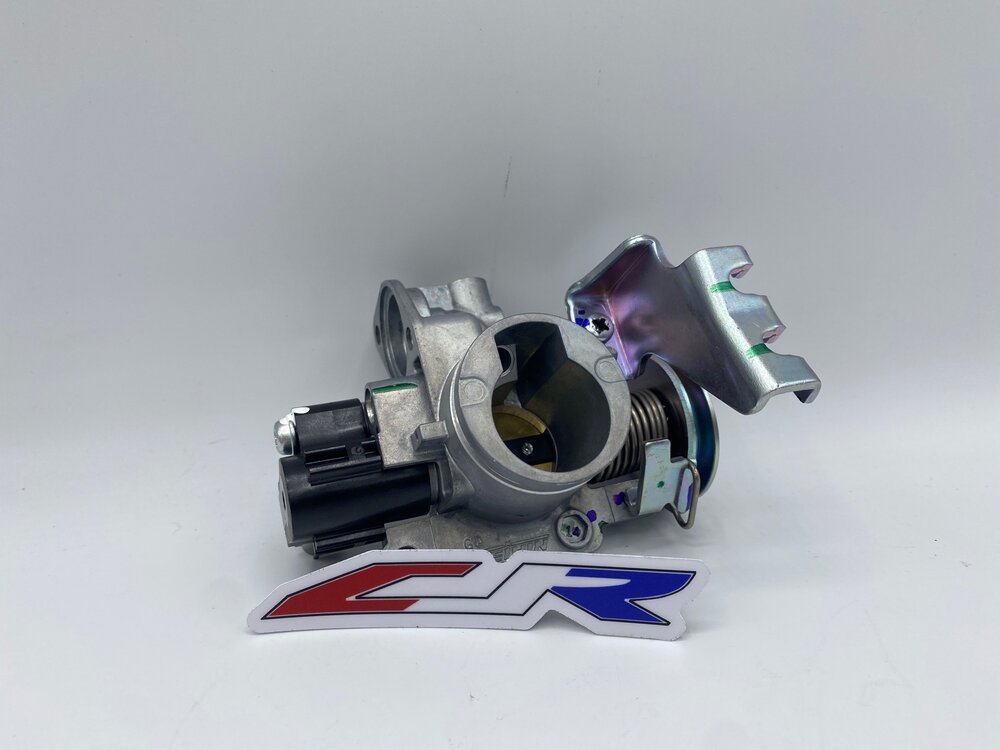

CJR Performance Throttle Body / Manifold Kit for CRF110F

$224.99 $249.99
(8)

Manifold - Throttle Body

Description

Unleash the performance of your Honda CRF110F with our new CNC 26-22 intake manifold and upgraded 24mm or 26mm throttle body kit. The stock intake system is extremely limited tapering as small as 13mm in the manifold. With the larger 24mm or upgraded 26mm throttle body kit, you can expect up to TWICE the horsepower at redline over the stock configuration (Generally we see a stock CRF110 make peak power 5.5hp @7800rpm and 3.7hp at 9800rpm redline). With just a throttle body kit + intake hose upgrade alone you can see up to 8-8.5hp at redline even with the stock exhaust! This is the ultimate starting point for the CRF110F pairing great with both stock bore, and big bore kits.

Currently available as a 24mm Kit, 26mm Kit, and Throttle Body sold individually.

CJR 26-22mm CNC Throttle Body Kit -
- CNC Machined 26mm to 22mm Manifold
- Optional 24mm and 26mm Throttle body (26mm Removes Fast Idle Valve)
- OEM sensor/injector location for a direct OEM swap

*NEW* CJR 30-25mm CNC Throttle Body Kit -
- CNC Machined 30mm to 25mm Manifold
- 30mm Throttle Body (Note - Removes Fast Idle Valve)
- Intake mounting diameter machined down to fit 38mm/1.5" intakes with 30mm or larger inner hose diameter (Decha, Pax, MMC)
- Requires ported cylinder head matched to 25mm
- Requires custom tune or aRacer standalone ECU
- If used with ECU flash, ensure tuner has custom tune available for 30mm kit

Avail Motorsports CNC Ported Manifold -
- This has been carefully developed and designed to push the absolute limits of the stock manifold. The OEM 110 manifold has been opened up from a sad 12mm, to a whopping 17mm, and has shown a significant improvement on the dyno with a tune or paired with your favorite CJR Performance ECU flash.

  • Stock ECU with CNC Manifold…  16% gain
  • CJR Flash with CNC Manifold… 28% gain
  • CJR Flash/Exhaust/Cam/24mm TB with CNC Manifold… 56% gain!
  • NOTE - This is a core exchange and will require sending in your OEM manifold as a trade in.
  • NOTE - When using aftermarket 24mm throttle body, the machined adapter bolts are required. (Bolts sold in set of 2)

NOTE - ECU FLASH OR AFTERMARKET FUEL CONTROLLER IS REQUIRED WITH THIS UPGRADE. THE BIKE WILL NOT GAIN PERFORMANCE WITHOUT A PROPER TUNE DUE TO THE RESTRICTED OEM INTAKE MANIFOLD.
- FAST IDLE VALVE NOT USED WITH 26MM THROTTLE BODY, THIS IS THE SENSOR LOCATED ON THE LEFT SIDE MOUNTED WITH 2 BOLTS

OEM Throttle Body/Manifold Trade In - After checkout, you may send in your stock intake manifold and throttle body to the address below. Once received, we will issue a partial refund to the payment type used, or it can be applied for store credit towards your next purchase.

Trade-in Shipping address -
CJR Performance
5825 E Hwy 163
Columbia MO 65201

DISCLAIMER: LEGAL IN CALIFORNIA ONLY FOR RACING VEHICLES WHICH MAY NEVER BE USED, OR REGISTERED OR LICENSED FOR USE, UPON A HIGHWAY.

This product is legal for closed-course competition use only; for racing vehicles (a competition vehicle not used on public highways). Intended for off-road use or race purposes; does not meet regulations of pollution controlled roads or highways. This system is NOT compliant with the California Environmental Protection Agency (E.P.A.) or California Air Resources Board (C.A.R.B) for use on public roads or lands.
