CJR Performance

27mm / 30mm Throttle Body + Intake Manifold Kit 2022+ Honda Grom / Monkey

$279.00 $359.99

Option

Description

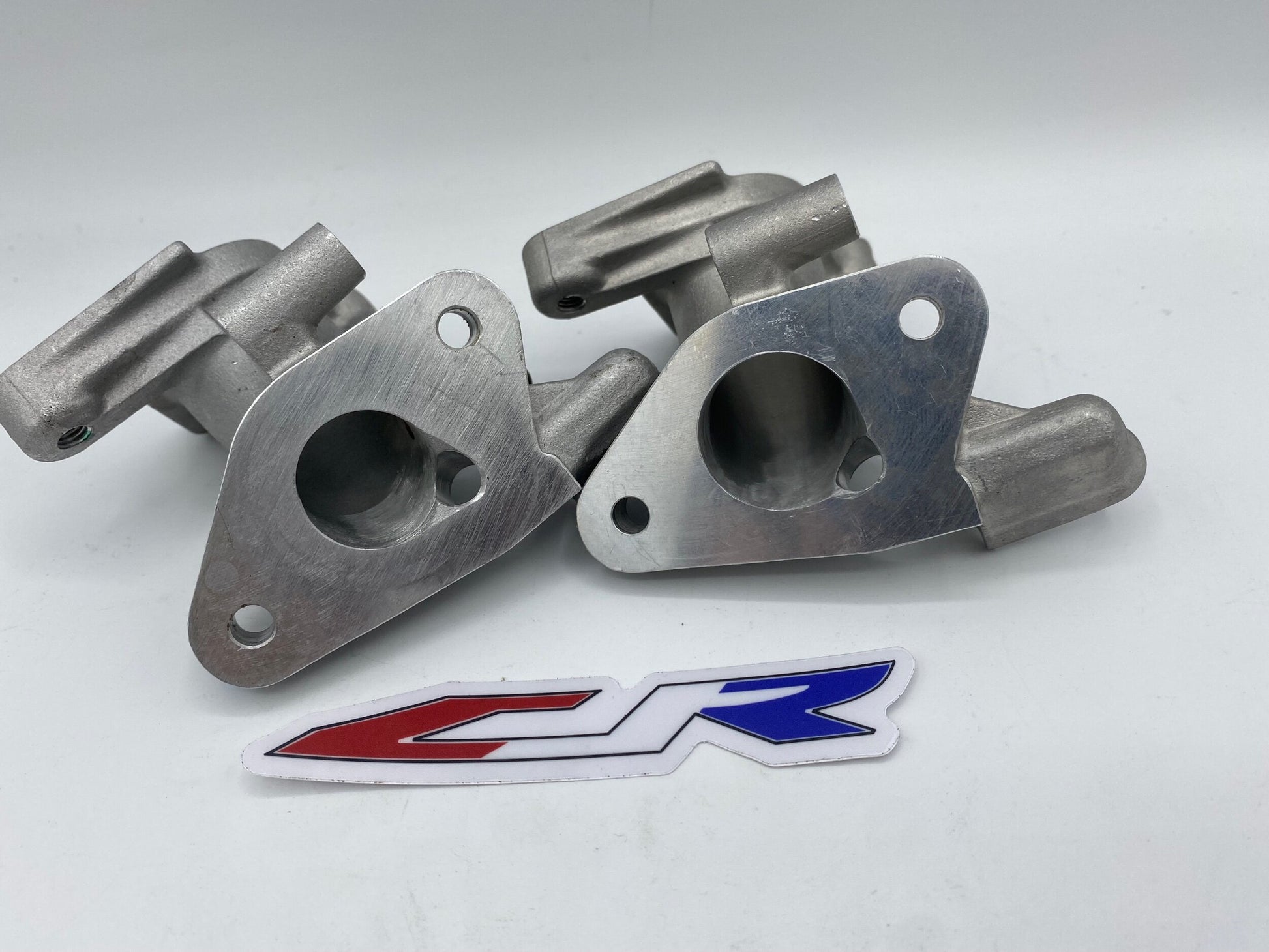

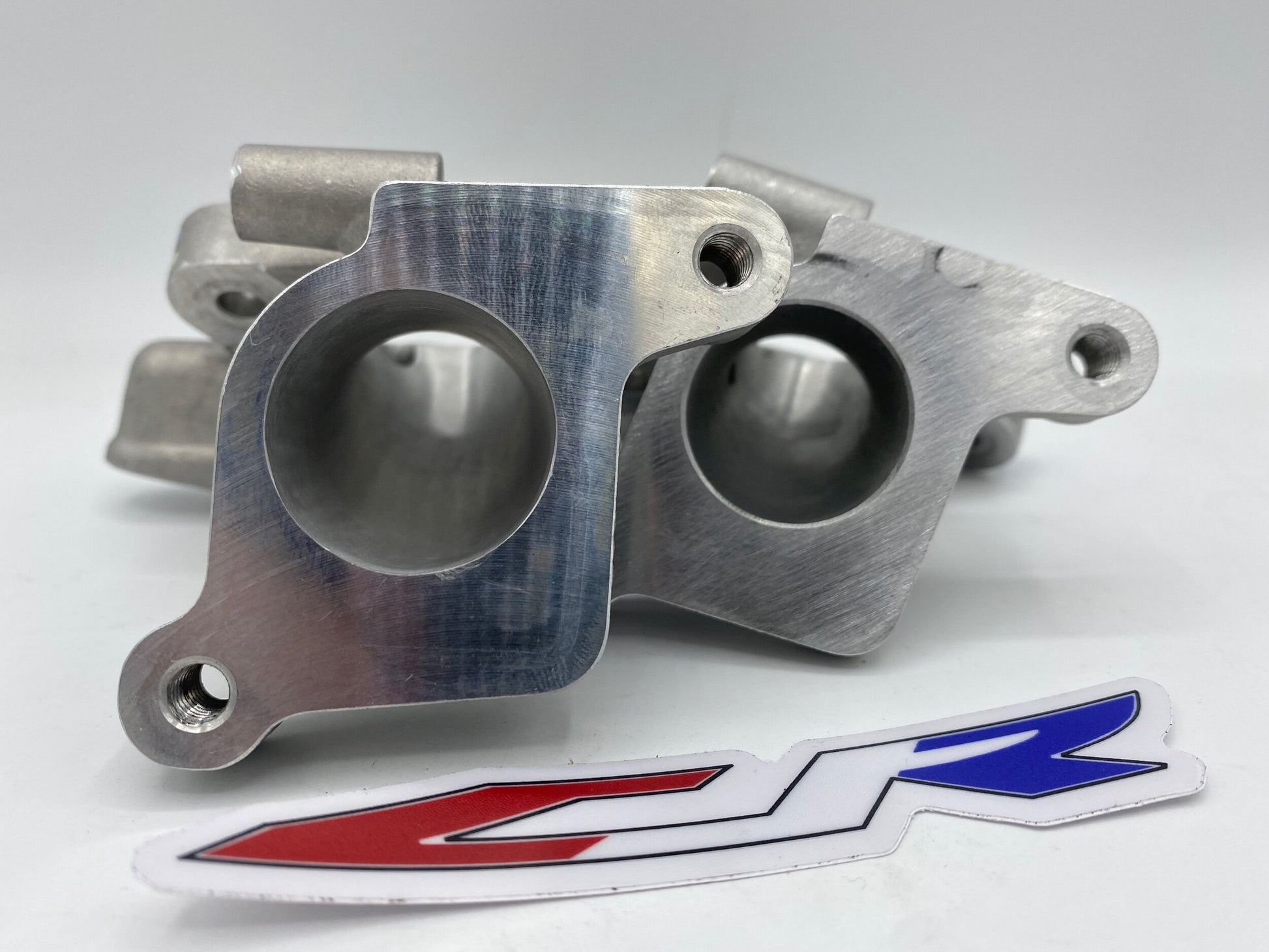

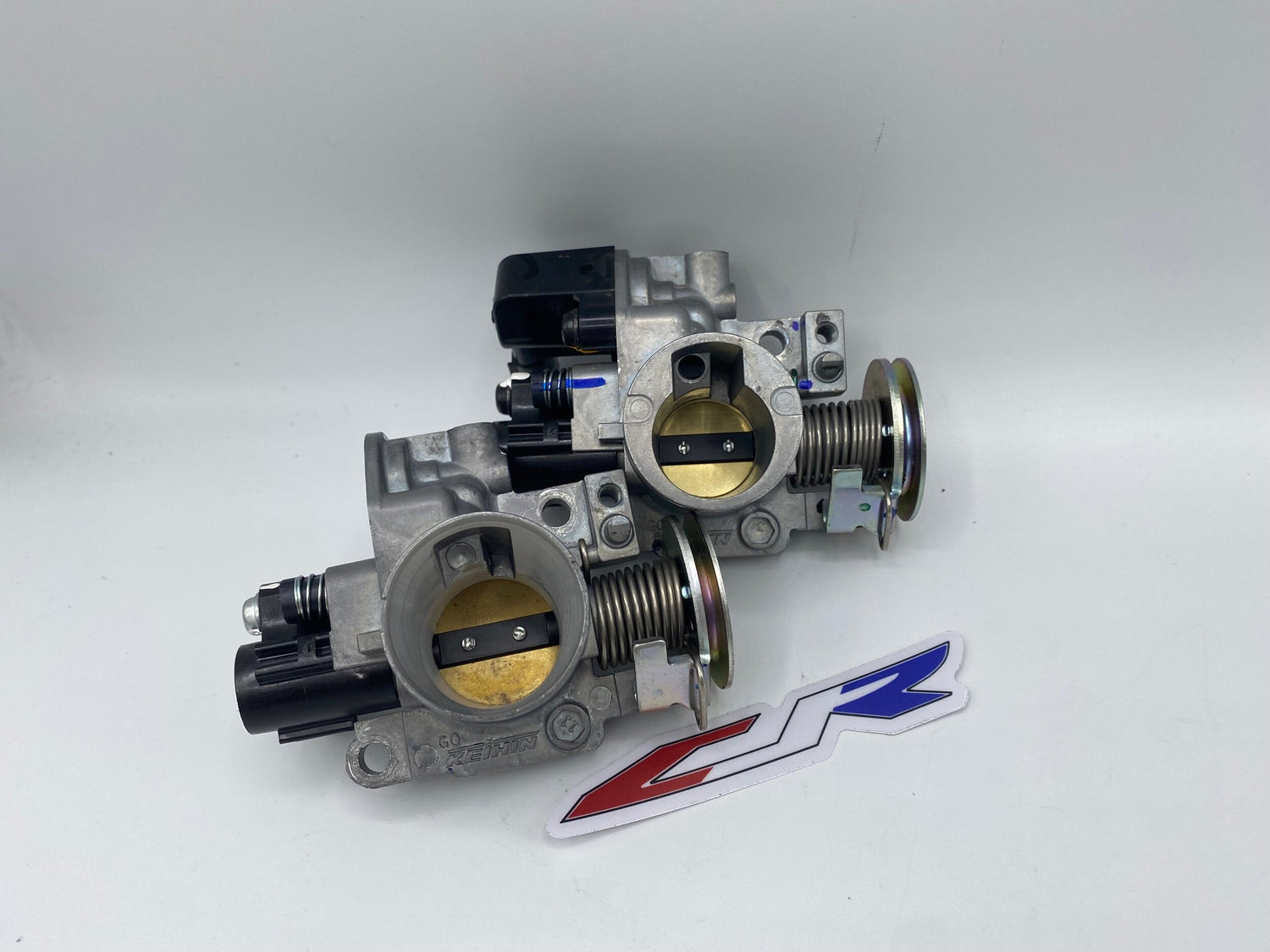

Upgrade the stock 24mm throttle body and cast manifold with a ported 26mm or 27mm throttle body, along with the CJR ported manifold. Our ported manifold is designed to be used with either a stock or port matched race head.

The 26mm throttle body kit may be used with your stock unmodified OEM intake manifold for an average 3-4% increase across the entire RPM range - No additional tune upgrade is required when moving from the OEM 24mm, bolt on and enjoy the additional power!

The 27mm Throttle Body Kit will require the CJR ported manifold and the combination makes for an average 7-8% increase in power through the midrange and top end while on the stock cylinder head. On average we see a 1hp increase when combined with intake/exhaust/camshaft/tune Additional tune upgrade is required for the combination upgrade.

The CJR 30mm Throttle Body Kit creates a big bump in low-mid range torque, most noticeable during roll on throttle and a gain in top end overrev. The intake manifold is ported from 30mm to 25mm at the cylinder head. It is highly recommended to pair this with a S1 camshaft and 140cc injector to fully benefit this option and pairs great with a custom ECU flash or aRacer standalone. The 30mm throttle body has a machined outer lip to ensure your current 38mm intake like the chimera, drow, or mnnthbx intake will work with this throttle body, so no need for a new intake like the larger 34mm koso/kitaco/takegawa require.
Note - The 30mm throttle body itself does not use the fast idle valve so that will be removed during install.


*Note - Requires swapping OEM throttle cable bracket onto the new throttle body
**Note - No EVAP nipple is located on the new manifold.
***Note - Cam reel does have a slightly different orientation, does not affect performance or install. A throttle cable adjustment may be required.
****Note - Return cable is optional to use OEM or delete for racing applications.

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
R.P.
The 30mm is worth it

I had been running the 27mm TB/manifold. Cameron suggested the 30mm for even more improvement. And he was right. The HP/Torque off throttle to WOT improved even over the 27mm. Especially from part throttle up it saw improvement. The 30mm is single throttle cable. But that was just fine with me. The return is even snappier with just the pull cable. Highly recommend

L
L.B.

Nice bolt on product that gives you a little more power on the top end of the gear for sure. You will be able to pull hills at a higher speed. Go ahead and get a plug and play ECM to go with it and everything will work nicely.

CJR Performance

27mm / 30mm Throttle Body + Intake Manifold Kit 2022+ Honda Grom / Monkey

From $279.00 $359.99

Upgrade the stock 24mm throttle body and cast manifold with a ported 26mm or 27mm throttle body, along with the CJR ported manifold. Our ported manifold is designed to be used with either a stock or port matched race head.

The 26mm throttle body kit may be used with your stock unmodified OEM intake manifold for an average 3-4% increase across the entire RPM range - No additional tune upgrade is required when moving from the OEM 24mm, bolt on and enjoy the additional power!

The 27mm Throttle Body Kit will require the CJR ported manifold and the combination makes for an average 7-8% increase in power through the midrange and top end while on the stock cylinder head. On average we see a 1hp increase when combined with intake/exhaust/camshaft/tune Additional tune upgrade is required for the combination upgrade.

The CJR 30mm Throttle Body Kit creates a big bump in low-mid range torque, most noticeable during roll on throttle and a gain in top end overrev. The intake manifold is ported from 30mm to 25mm at the cylinder head. It is highly recommended to pair this with a S1 camshaft and 140cc injector to fully benefit this option and pairs great with a custom ECU flash or aRacer standalone. The 30mm throttle body has a machined outer lip to ensure your current 38mm intake like the chimera, drow, or mnnthbx intake will work with this throttle body, so no need for a new intake like the larger 34mm koso/kitaco/takegawa require.
Note - The 30mm throttle body itself does not use the fast idle valve so that will be removed during install.


*Note - Requires swapping OEM throttle cable bracket onto the new throttle body
**Note - No EVAP nipple is located on the new manifold.
***Note - Cam reel does have a slightly different orientation, does not affect performance or install. A throttle cable adjustment may be required.
****Note - Return cable is optional to use OEM or delete for racing applications.

Option

  • 30mm CJR Throttle Body Kit
  • CJR 27mm TB/Manifold Kit
  • 26mm Throttle Body Only (FOR STK MANIFOLD)
  • 27mm Throttle Body Only
  • CJR 27mm Manifold Only
